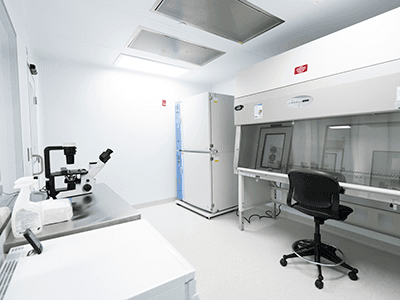

This specific module includes the quality control laboratory area prepared for:

• Analise the samples in the sampling area.

• Analise the intermediate product.

• Analise the final product.

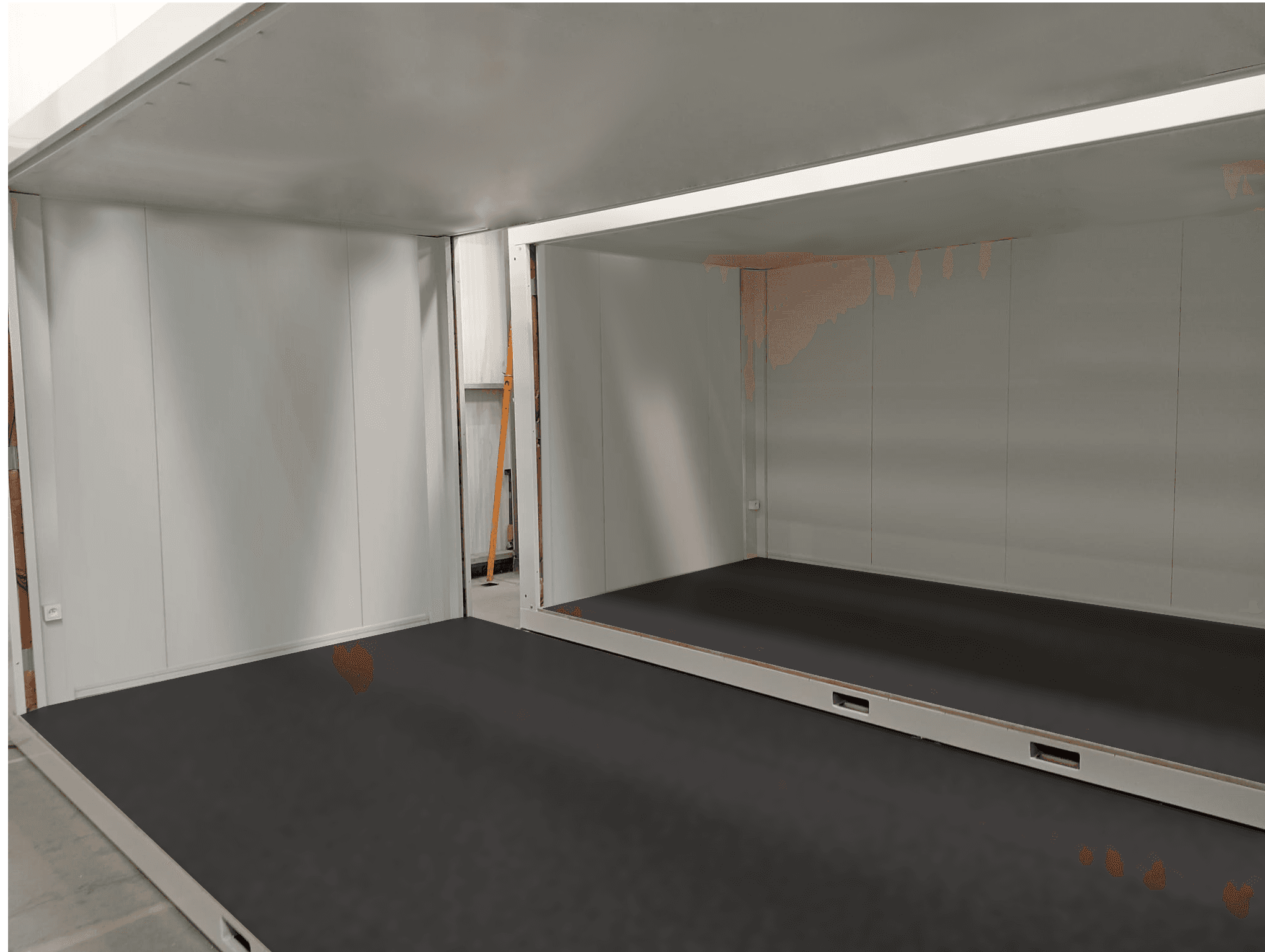

Module’s general characteristics as per Base Clean Room Module:

1. Clean room level:

   • Dimensions:

     • External: 5,84 m x 2’35 m x 2’6 m (Length x Width x Height).

     • Internal: 5,72 m x 2’23 m x 2’5 m (Length x Width x Height).

   • Non-Classified Area.

   • Clean room panels and finishing as per SAMPU standards.




2. Technical level:

   • Technical area installed above including HVAC ducts, cables and piping.




3. Total combined height of clean room level + technical level is 4,5 m.

Furniture and laboratory equipment

• The module includes inox benches to install the laboratory equipment.

• The following utilities are available:

  • Purified water (PW).

  • Pharmaceutical Compressed Air (PCA).

  • Compressed air (CA).

  • Electricity.

  • OPTIONAL: other inert gases

• OPTIONAL: Laboratory equipment can be supplied.

Design and Manufacturing criteria

• Operable by maximum 3 people.

• According to regulations:

  • European Commission Vol. 4 EU Guidelines to Good Manufacturing Practice. Medicinal Products for Human and Veterinary Use.

  • Good Manufacturing Practices of the Food and Drug Administration (FDA).

  • 21 CFR Part 11 “Electronic Records, Electronic Signatures”. Food and Drug Administration Title 21 of the Code of Federal Regulations.

  • Equipment Directive 2006/42/EC.

  • EN ISO 14122: Safety of machinery - Permanent means of access to machinery, part 1 till 4.

  • EN ISO 13849: Safety of machinery - Safety-related parts of control systems.

Documentation

• Design documentation.

• DQ protocol + report.

• As-built documentation:

  • CE Declaration of Conformity.

  • Layouts.

  • Electrical diagram.

  • Pneumatic diagram.

  • Datasheet of valves and/or instrumentation and components.

  • Calibration Certificates.

  • Operation manual:

    • Start-up procedure.

    • Format changeover procedure.

    • Cleaning procedure.

    • Alarms list with every troubleshooting.

  • Maintenance manual.

  • Spare parts list and fungible assets.

• FAT & SAT protocols + report.

• IQ & OQ protocols + report.

• PQ protocol + report.




The standard language of all documentation will be English.
